Evolving Enzymes
Inovating IVD

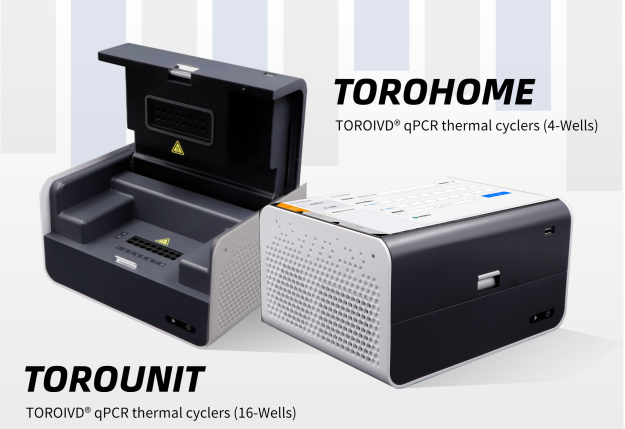

Portable，low-cost and easy-to-use qPCR cycler，test 4 or 16 samples at a time.

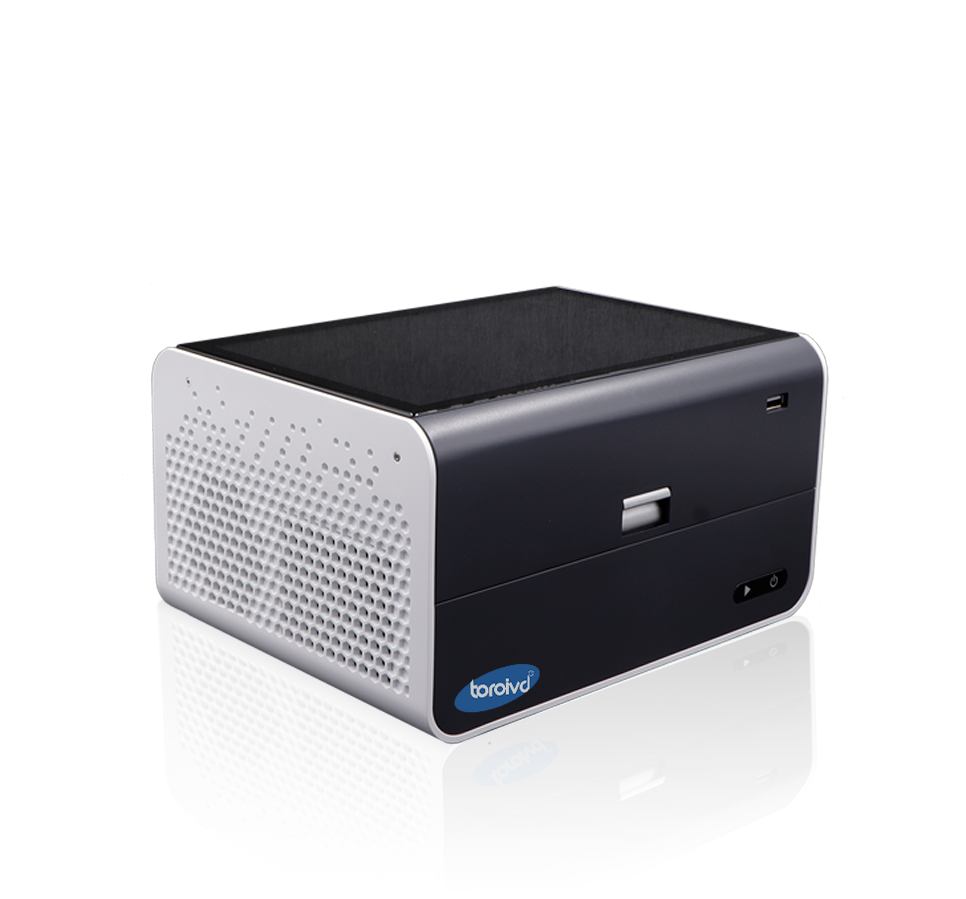

TOROUNIT® qPCR Cycler (or TOROHOME®) is an ultra-portable and rapid qPCR instrument compatible with standard qPCR assays. Target applications include rapid on-site nucleic acid detection for infectious diseases, blood screening, food safety, and environmental monitoring. This instrument is designed based on the Anitoa CMOS ULS24 ultra-low light biosensor chip. With no internal moving parts, it's stable and robust, requiring no calibration during operation.
| Specifications |
Basic Performance | |
Dimensions | 247×188×133mm |
| Weight (Bare Machine) | 2.6kg |
| Power Supply | DC 15V 9.6A |
| Noise Level | ≤ 50dB |
Communication Interface | TypeA |
PCR cycler Performance | |
| Sample Volume | 10 ~ 60μL |
| Compatible Consumables | 0.2ml single tubes or 8-strip tubes with fully transparent caps and bodies. |
| Maximum Heating Rate | ≥ 8.0℃/s |
| Maximum Cooling Rate | ≥ 5.5℃/s |
| Temperature Accuracy | ≤ 0.5 ℃ |
| Detection Reproducibility | Cq CV≤2% |
Fluorescence Detection Performance | |
| Light Source | High-brightness LED |
| Detector | ultra-high sensitivity CMOS photosensitive chip |
Channel I | Excitation: 523nm Detection：564nm Dye of probe：VIC，HEX，TET，JOE |
| Channel II | Excitation: 571nm Detection：612nm Dye of probe： ROX,Texas Red |
【Order infromation】
Cat NO. | Product Name | Size | Qucik Settings Manual | Professional Manual | Flyer |
TOROUNIT | TOROUNIT® qPCR Cycler | 16 wells |  | | |
TOROHOME | TOROHOME® qPCR Cycler | 4 wells |
 | TOROUNIT.pdf |  |
