Portable，low-cost and easy-to-use 16 wells qPCR cycler with three fluorescent channels that can be used by both non professionals and professionals of laboratory.

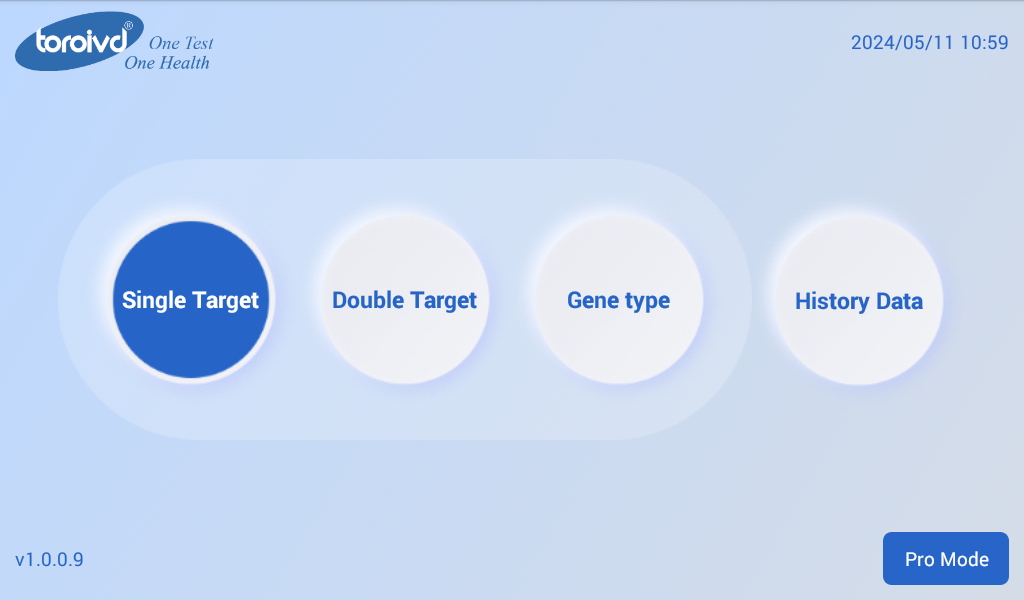

TOROUNIT® qPCR Cycler Plus is a 16 wells qPCR Cycler with three fluorescent channels that can be used by both non professionals and professionals of laboratory. There are three buttons in the software main interface,"single target", "double target", and "gene type". For non professionals, the test can be started with just one click with the POCT bricks and other qPCR reagent kits from TOROIVD. For professionals in the laboratory, "Pro Mode" button can clicked be to enter professional mode, and three channels fluorescent channels with ROX, FAM, and VIC You can be set up for qPCR detection or melting curve analysis. This instrument is portable, easy to use and suitable for both laboratory testing and POCT. This instrument can be widely used for scientific research and disease diagnosis and control.
| Features |
-Portable: Only 4.5kg and suitable for on-site testing.
-Easy to use: 1-button start for non professionals.
-High applicability: Compatible with all tests from TOROIVD.
-Powerful:3 fluor-channels or melting curve analysis for professionals.
| Specifications |
Basic Performance | |
Dimensions | 320×240×177mm |
| Weight (Bare Machine) | 4.5 kg |
| Power Supply | 100-240V ，50-60Hz |
| Noise Level | 45dB |
Communication Interface | USB |
PCR cycler Performance | |
| Sample Volume | 25 ~ 120μL |
| Compatible Consumables | 0.2ml single tubes or 8-strip tubes with fully transparent caps and bodies. |
| Maximum Heating Rate | ≥ 4.5℃/s |
| Maximum Cooling Rate | ≥ 3.8℃/s |
| Temperature Accuracy | ±0.2 ℃ |
| Detection Reproducibility | Cq CV≤2% |
Fluorescence Detection Performance | |
| Light Source | High-brightness LED |
| Detector | PD |
Channel I | Excitation: 525nm±10nm Detection：570nm±10nm Dye of probe：VIC，HEX，TET，JOE |
| Channel II | Excitation: 570nm±10nm Detection：620nm±10nm Dye of probe： ROX,Texas Red |
| Channel III | Excitation: 470nm±10nm Detection：520nm±10nm Dye of probe： FAM,SYBR Green I,Eva Green |
【Order infromation】
Cat NO. | Product Name | Size | Professional Manual | Flyer |
TOROUNIT-P | TOROUNIT® qPCR Cycler Plus | 16 wells | |  |
 | TOROUNIT.pdf |  |
